Slit Lamp 5S

Product Details

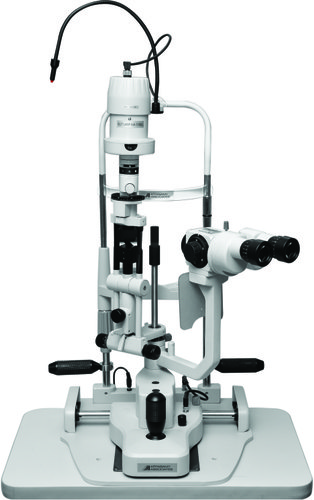

SLIT LAMP

Model : AIA 11 5S / 5S L



  • Galilean Stereo Microscope Type
  • Drum rotation Magnification Changer
  • 100 mm Working Distance
  • f 100 mm Objective Lens Focal Length

specification

 Stereo Microscope Type  Galilean
 Magnification Changer  Drum rotation
 Working Distance  100 mm
 Objective Lens Focal Length  f 100 mm
 Eye Pieces (Large Optics)  12.5x
 Total Magnifications  6x, 10x, 16x, 25x, 40x
 Real Field of View  43, 27,16,11, 7 mm
 Inter Pupillary Distance  55 - 75 mm
 Diopter Adjustment Range  -6 D to +6 D
Common Specifications
Slit image Width  0 to 14 mm continuously variable
 Slit image Height  0 to 14 mm continuously variable
 Illumination Field Diameter in mm  0.2, 2, 3, 4, 6, 8 & 14 mm
 Slit Rotation  0° to 180°
 Slit Inclination  5°, 10°, 15°, 20°
 Sclerotic Scatter Knob  for Indirect illumination & Retro illumination
 Filters  Heat absorbing, Green (Red free ), Cobalt blue
 Illumination  12 V- 30 W Halogen lamp / 3.4 V-700 mAh LED
 Operation  3 Dimensional single handed operation
 Instrument base movement  99 mm (in/out), 30 mm (up/down),118 mm (left/right)
 Physical Parameters
Dimensions L x W x H )  725 x 460 x 555 mm
Weight  net 20 Kg and gross 27 Kg (approx)
 Chin rest movement range  120 mm
Electrical Specifications
Power supply  ~110-230 V, 50-60 Hz
 Power consumption  45 W max(Halogen) / 2.4 W max(LED)

Standard Accessories

  • Focusing test rod & dust cover (1)
  • Allen key(1 set)
  • User manual(1),
  • Slitlamp dust cover(1)
  • Fuse(3)
  • Mirror(1)
  • Breath shield(1)
  • Rack guard(1set)
  • Chin rest pins(2)
  • Chin rest paper pack(1set)

Optional Accessories at an extra cost

  • Manual stand
  • Motorized stand
  • Hruby lens
  • Yellow filter
  • Neutral density filter
  • I.R.cut off filter
  • 12 V- 30 W Halogen lamp
  • 3.4 V-700 mAh LED
  •  Eye pieces 15x for 2 step ,3step & 5 step
  • Diffuser filter

Anterior Segment Imaging & Video Documentation

  • Beam Splitter, C-Mount, High Resolution CCD Camera ( ½’’,OSD, S-Video & BNC )
