Autorefractokeratometer
Product Details

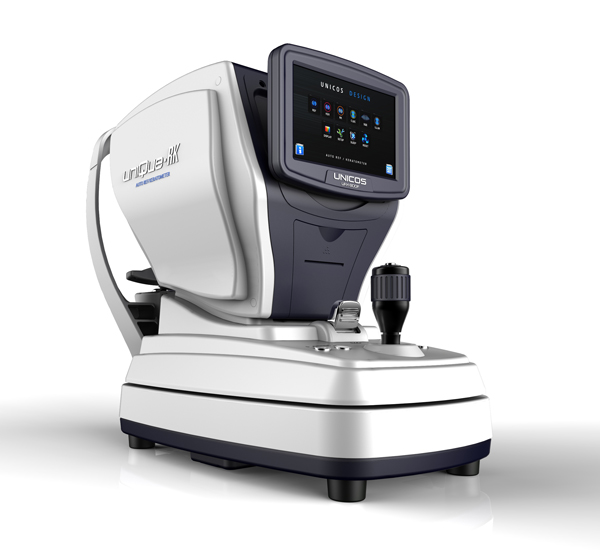

Auto Refractor/Keratometer
Model: URK 800F
20° Tilted 7.0 Wide” Color Touch LCD Monitor
The user could operate the equipment more convenient with full touch screen, clearer and larger screen size.
Enhanced Temperature Compensation
Precise temperature sensor compensates the temperature variation in measurement data
Electric Powered Chin Rest
User can move new chin rest just by pressing the button and new designed sensor make you avoid wrong operation in advance.
Position sensor avoids wrong operation
Convenient Lock Knob
The user can lock the equipment just by pushing and pulling the knob.
Automatic cutting printer
The printing paper with data result is cut automatically at high speed.
Outstanding Features
- 7 inch color TFT Touch LCD : Clearer and wider Graphic User Interface(GUI)
- Convenient function for LCD monitor : 20° tilting monitor display for user convenience
- Automatic cutting printer paper with high speed for user convenience
- Enhanced measurement speed : Through specially designed image chips, speed improvement for REF measurement and more accurate measurement data
- Convenient Lock Knob : Easy-to-use Lock function only using knob for user convenience
- Measurement for Iris and Pupils diameters : By function of image capture, user can easily measure Iris and Pupils diameters.
- Function of temperature compensation : Regardless of inner temperature, function of temperature compensation supports highly accurate measurement data.
- Electric powered Chinrest
- Wireless system via Bluetooth : It allows perfect data transmission with UDR-800 and ULM-800 regardless of working environment.
Specification
| Mode | K/R Mode, Ref. Mode, Ker. Mode, CLBC Mode | |
| Ref. | Vertex Distance (D) | 0, 10, 12, 13.5, 15 mm |
| Sphere(SPH) | - 25.00 ~ + 22.00 d (0.12, 0.25 d) | |
| Cylinder(CYL) | 0.00 ~ +/- 10.00 d (0.12, 0.25d ) | |
| Axis | 1 ~ 180° | |
| Cylinder Form | -, +, +/- | |
| Pupil Distance | 10 ~ 85 mm | |
| Min. Pupil Dia. | ø 2.0 mm | |
| Ker. | Radius of Curvature | 5.0 ~ 10.2 mm |
| Corneal Power | 33.00 ~ 67.50 d | |
| Corneal Astigmatism | 0.00 ~ -15.00 d (0.05/0.12/0.25 d) | |
| Axis | 1 ~ 180° | |
| Corneal Dia. | 2.0 ~ 12.0 mm | |
| Other | Internal Printer | Thermal Printer |
| Display | 7.0 inch Wide Touch LCD Color Monitor | |
| Power Supply | AC 100 ~ 240 V, 50/60 Hz, 90W | |
| Dim./Weight | 275(W) x 525(D) x 440(H) mm / 20 Kg | |
| Chinrest Mov. | Max. 65 mm | |
| Data Output | RS-232 Interface, Video Output | |
